Flow Runs

The Flow Runs view shows the execution history of your automated workflows. Track which flows have run, see their results, and debug issues.

Accessing Flow Runs

Click Flow Runs in the sidebar or press Ctrl+7 to open the view.

Execution List

The main panel shows all flow executions with:

Column	Description
Flow	Which flow ran
Status	Current execution state
Trigger	What started the flow (Manual, Schedule, Ticket event)
Started	When execution began
Duration	Total execution time
Nodes	Progress indicator (completed/total nodes)

Execution Statuses

Status	Meaning
Pending	Queued but not started
Running	Currently executing
Paused	Waiting for user input
Completed	Finished successfully
Failed	Ended with an error
Cancelled	Stopped by user

Execution Details

Click an execution to view its details:

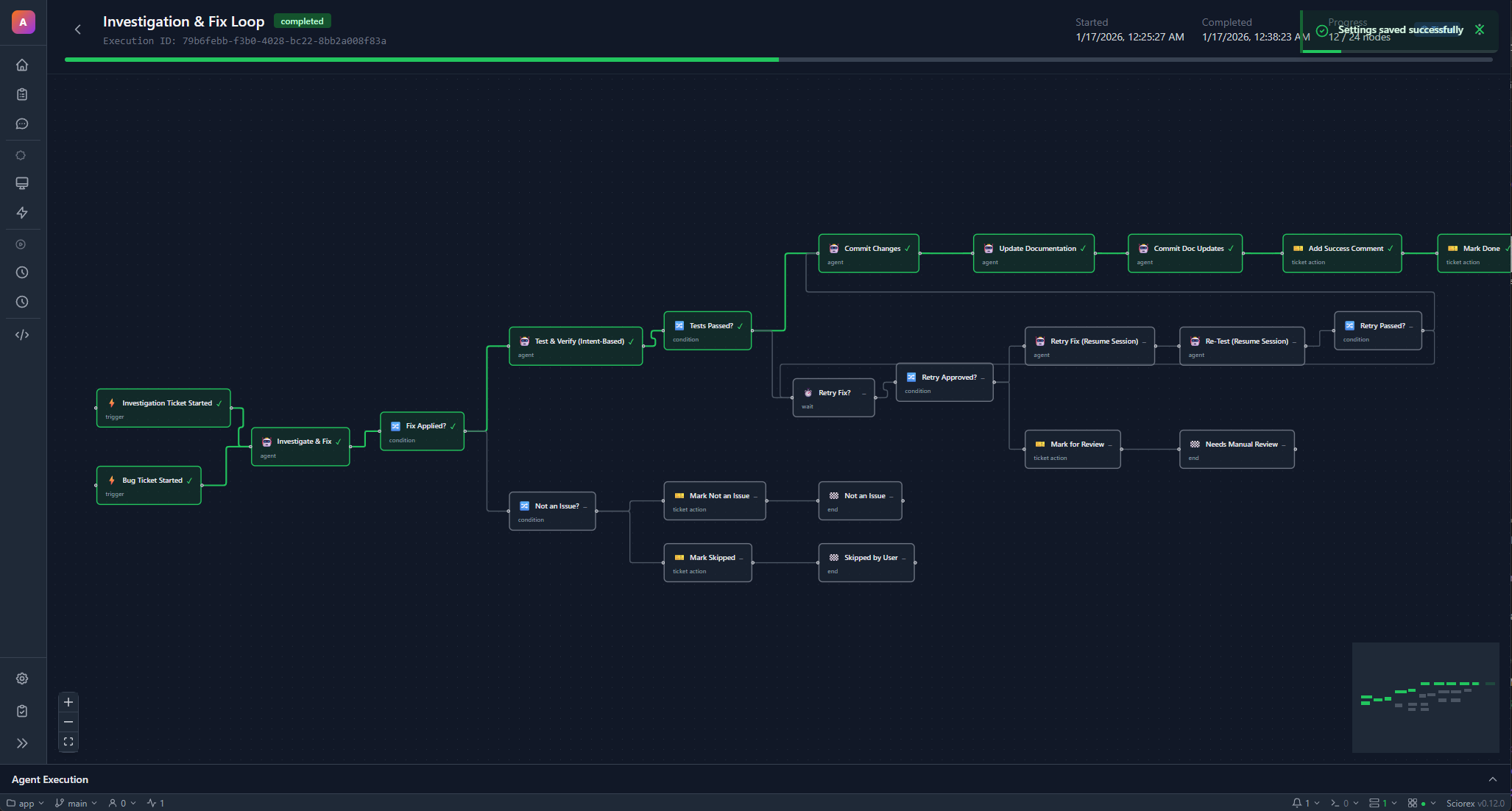

Execution View

Opens the Flow Execution View showing:

• Visual flow diagram with node status indicators
• Current position highlighting the active node
• Node results for completed nodes
• Error details for failed nodes

Timeline Tab

Shows a chronological list of events:

• Node start/complete times
• Data passed between nodes
• Errors and warnings
• User inputs (for Wait nodes)

Context Tab

Shows the execution context:

• Trigger input data
• Node outputs
• Flow variables
• Current state

Real-time Monitoring

For running flows:

• Node status updates in real-time
• Progress bar shows overall completion
• Active nodes are highlighted
• Errors appear immediately

Flow Controls

While a flow is running:

Action	Description
Pause	Pause at the next safe point
Resume	Continue a paused execution
Cancel	Stop the execution entirely
Inject Data	Provide input to a waiting node

Filtering

Filter the execution list by:

Filter	Options
Flow	Show executions for a specific flow
Status	Filter by status
Trigger Type	Manual, Scheduled, Ticket event
Time	Today, This Week, This Month, All

Re-running Flows

To re-run a flow:

1. Find a previous execution
2. Click Re-run from the options menu
3. Optionally modify the trigger input
4. The flow starts a new execution

Debug Mode

Enable Debug Mode from the flow toolbar to step through execution node by node:

Action	Description
Step	Execute the next node and pause
Continue	Run until the next breakpoint or completion
Stop	Cancel the execution
Skip	Skip a node and provide mock output
Modify Input	Change a node's resolved inputs before execution
Modify Output	Change a node's output after execution

Set breakpoints on specific nodes (before or after execution) to pause and inspect data at each stage. Debug Mode shows resolved inputs, expected next nodes, and actual outputs.

Error Recovery

When a node fails during execution, the flow pauses and presents recovery options:

Action	Description
Retry	Re-execute the failed node
Skip	Skip the node and provide mock output to continue
Stop	Cancel the entire execution

This lets you recover from transient failures (API timeouts, rate limits) without restarting the entire flow.

Debugging Failed Flows

When a flow fails:

1. Open the execution details
2. Find the failed node (marked in red)
3. Check the error message and stack trace
4. Review the node's input data
5. Use Error Recovery to retry or skip the failed node
6. Or fix the issue in the flow editor and re-run

Scheduled Flow History

For flows with schedule triggers:

• Each scheduled run appears as a separate execution
• View the pattern of runs over time
• Identify missed executions
• Check for recurring failures

Archived Executions

Completed executions can be archived to keep the list clean. Archived executions are hidden by default but can be shown with a filter toggle. The FlowExecution tracks archived: boolean for this purpose.

Worktree Results

For flows that use worktree isolation, the execution details show merge results when a worktree branch is merged back to the base branch.
